MCI929-QLS Automatic locking screw machine dedicat
  • Product name:

    MCI929-QLS Automatic locking screw machine dedicat

    Category: ATTONIC
    Product model: MCI929-QLS
Product details

一、Characteristics

It is used to automatically lock the screw machine to lock the product. It is required to test the torque of the screw machine online (set the test procedure and detect the torque without removing the electric batch) to check whether the set torque of the lock screw machine matches the actual lock torque.

 ●     Automatically store 1000 peaks during testing.

At the same time automatically send peaks to the computer or PLC.

Output the torque setting HI, OK, LO high and low values, Corresponding control signals to the PLC (optional).

The built-in real-time clock shows real-time time and date.

   ● Standard USB/RS232C output.

   ● Small size for easy installation

二、Parameter

型 号 Type

最大负荷 Max.load

最小负荷 Min.load

Kgf.cm

N.m

Lbf.in

Kgf.cm

N.m

Lbf.in

MCI929-QLS-1N.m

10.00

1.000

8.680

0.01

0.001

0.001

MCI929-QLS-10N.m

100.0

10.00

86.80

0.1

0.01

0.01

MCI929-QLS-30N.m

300.0

30.00

260.4

0.1

0.01

0.01

MCI929-QLS-50N.m

500.0

50.00

434.0

0.1

0.01

0.01

MCI929-QLS-100N.m

1000

100.0

868.0

1

0.1

0.1

MCI929-QLS-200N.m

2000

200.0

1736

1

0.1

1

精度

Accuracy

±0.5%

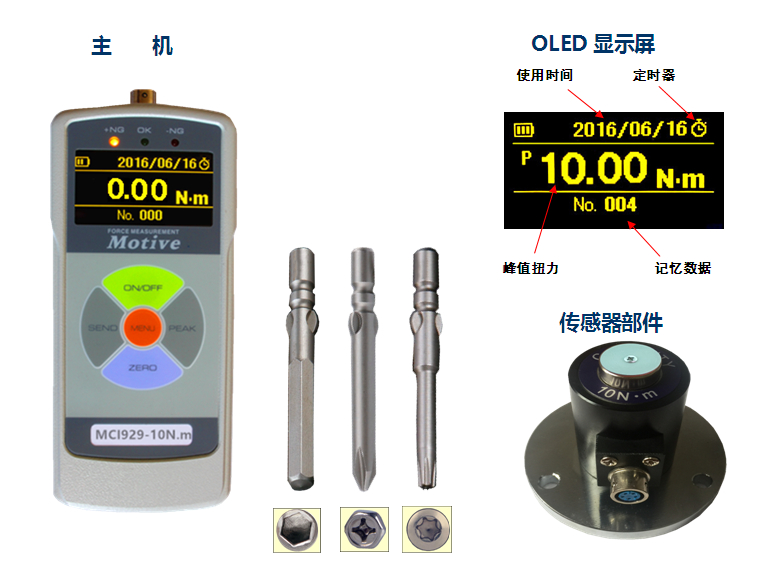

显 示

Display

采用高亮OLED显示屏,超宽视角,信息容量大,中、英、日、韩等8国文字,全球适用。

It   adopts high-brightness OLED display, wide viewing angle and large

information capacity. It is suitable for   Chinese, English, Japanese and Korean.



峰值模式

PEAK

显示扭力最大值

The highest value   of torque is hold-displayed



跟踪模式

TRACK

随扭力变化实时显示扭力值

The   torque value is shown in real time with the torque change

自动清零时间

Auto Clear Time

1~60秒自动清零,手动设置清零0.0秒

1to 60 seconds to   reset automatically,  manually reset   0.0 seconds

自动记忆功能

Automatic memory   function

可以记忆1000个数据   自动存储数据,同时发送到电脑

Can memorize 1000   data, automatically store data,

and send it to   the computer at the same time

主机重量

Display Weight

约600g

About 600g

传感器重量

Sensor Weight

1N.m约950g

1N.m About 200g

10N.m约950g

10N.m About 300g

30N.m约950g

30N.m About 300g

50N.m约950g

50N.m About 600g

100N.m约950g

100N.mAbout 950g



200N.m约950g

200N.mAbout 950g



   Special specifications can be customized

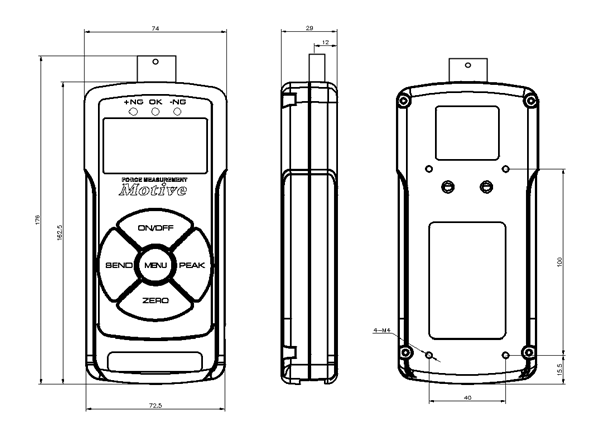

    三、Instrument Dimensions

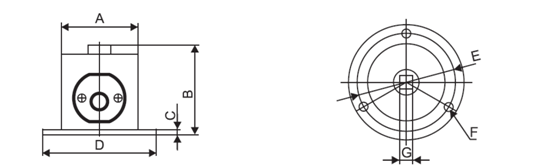

QLS sensor outline drawing


型号

A

B

C

D

E

F3等分)

G(方口)

QLS  1-5N.m

Φ30

54

7.1

Φ62

Φ53

Φ5.6

6.3sq

1/4 "

QLS  10--30N.m

Φ36

62

8

Φ74

Φ62

Φ6.4

9.5sq

3/8 "

QLS  50N.m

Φ60

67

10

Φ110

Φ90

Φ8.3

9.5sq

3/8 "

QLS 100--200N.m

Φ60

73

10

Φ110

Φ90

Φ8.3

12.7sq

1/2 "
